Heat Interface Unit Maintenance Checklist
Planned maintenance for heat interface units on district and communal heating: heat exchanger condition, control valve operation, return temperature performance, and heat metering.
Also available as editable Excel and Word — with asset, sign-off and findings columns.
What is a hiu maintenance checklist?
A heat interface unit maintenance checklist is a structured list of the 12 preventive maintenance tasks — covering visual, functional, cleaning and record-keeping checks — that keep a heat interface unit running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core hiu checks
- Check the unit for leaks at connections, valves, and the heat exchanger
- Record primary flow and return temperatures and compare against design
- Clean or replace strainers on the primary and secondary sides
- Take a heat meter reading and confirm it is communicating with the billing system
What is a heat interface unit?
A heat interface unit is the device that connects an individual dwelling or tenancy to a communal or district heating network. It transfers heat from the network to the property's heating and domestic hot water through one or two plate heat exchangers, while keeping the network water hydraulically separate. It typically contains control valves, a differential pressure control, strainers, a heat meter, and the controls that respond to demand.
HIUs matter to network performance out of proportion to their size. A network's efficiency depends heavily on return temperature: the cooler the water returning to the energy centre, the lower the distribution losses and the better the plant performs. An HIU that is fouled, badly controlled, or bypassing raises return temperature, and because the effect is distributed across every unit on the network, a population of underperforming HIUs degrades the whole scheme.
The practical difficulty is access. HIUs are inside occupied dwellings, which makes planned maintenance an appointment and access exercise as much as a technical one, and makes the no-access rate the main limit on how much of the population actually gets maintained.
This checklist is one of 15 in our heating maintenance checklists, covering boilers, calorifiers, heat exchangers, heat pumps and flues — combustion, controls and hot water safety checks.
Typical HIU maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.
Visual Checks
- Check the unit for leaks at connections, valves, and the heat exchanger
Functional Checks
- Record primary flow and return temperatures and compare against design
- Check secondary side flow and return temperatures for heating and hot water
- Test domestic hot water delivery temperature and time to temperature
- Verify control valves and actuators modulate correctly across their range
- Check the differential pressure control valve operates as designed
- Check for signs of plate heat exchanger fouling via temperature approach
- Verify the unit is not bypassing or keeping the primary hot when there is no demand
- Check system pressure and top up the secondary side where applicable
Cleaning & Housekeeping
- Clean or replace strainers on the primary and secondary sides
Record Keeping
- Take a heat meter reading and confirm it is communicating with the billing system
- Record all readings against the unit reference for network performance analysis
Download the free HIU maintenance checklist PDF
Get all 12 tasks as a printable PDF — free, no signup needed. Keep a copy in the plant room, attach it to work orders, or share it with your maintenance contractor.
The PDF is free and needs nothing. The Excel and Word versions add asset details, sign-off and findings columns so you can record the work as you do it — we ask for an email address for those.

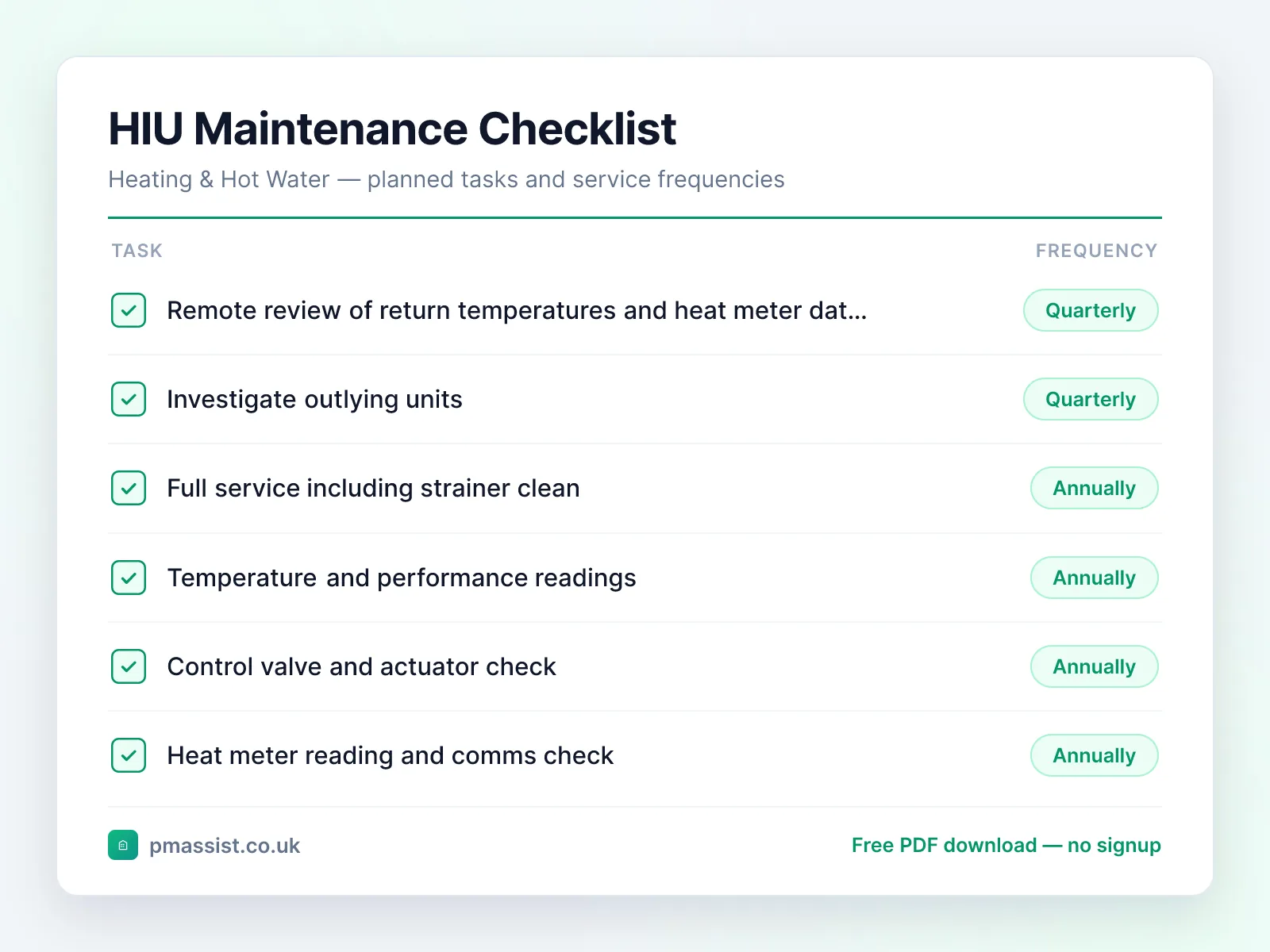

Typical maintenance frequency
Suggested intervals for heat interface unit maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Annually
- •Full service including strainer clean
- •Temperature and performance readings
- •Control valve and actuator check
- •Heat meter reading and comms check
Quarterly
- •Remote review of return temperatures and heat meter data where available
- •Investigate outlying units
Common faults and issues
Issues to be aware of when maintaining heat interface unit equipment.
Safety and compliance notes
Key safety considerations for heat interface unit maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.
Reference standards and frameworks
- United Kingdom
- SFG20, CIBSE Guide M, and Gas Safe requirements for gas-fired plant
- North America
- ASHRAE/ACCA Standard 180, plus ASME CSD-1 for automatically fired boilers
- Middle East
- Dubai Municipality's Green Building Regulations require commissioning to CIBSE Commissioning Code B (boilers)
Frameworks commonly referenced when planning hiu maintenance programmes. Always confirm the requirements that apply to your site and jurisdiction.
