Pressure Independent Control Valve (PICV) Maintenance Checklist
A maintenance checklist for PICVs covering flow setting verification, actuator operation, strainer cleaning, and commissioning data checks — for balanced HVAC water distribution systems.
What is a picv maintenance checklist?
A pressure independent control valve (picv) maintenance checklist is a structured list of the 10 preventive maintenance tasks — covering visual, functional, cleaning and record-keeping checks — that keep a pressure independent control valve (picv) running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core picv checks
- Inspect the valve for external leaks at connections and glands
- Verify the valve flow setting matches the commissioning design flow rate
- Clean the integral strainer (PICV strainers block more readily than line strainers)
- Record flow settings, actuator condition, and strainer cleaning
What is a pressure independent control valve (picv)?
A pressure independent control valve combines a control valve, a differential pressure regulator, and a flow limiter in a single body. PICVs automatically maintain the set flow rate regardless of pressure fluctuations in the system, eliminating the need for separate balancing valves and differential pressure control valves. They are widely used in modern commercial HVAC systems for fan coil units, AHU coils, and other terminal units.
Typical PICV maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.
Visual Checks
- Inspect the valve for external leaks at connections and glands
- Verify the valve is installed in the correct flow direction
Functional Checks
- Verify the valve flow setting matches the commissioning design flow rate
- Check actuator strokes correctly from fully open to fully closed
- Confirm the valve achieves full shut-off (zero pass-by)
- Test BMS control signal response throughout the modulating range
- Check the differential pressure across the valve is within operating range
- Confirm the valve position indicator aligns with the actuator signal
Cleaning & Housekeeping
- Clean the integral strainer (PICV strainers block more readily than line strainers)
Record Keeping
- Record flow settings, actuator condition, and strainer cleaning

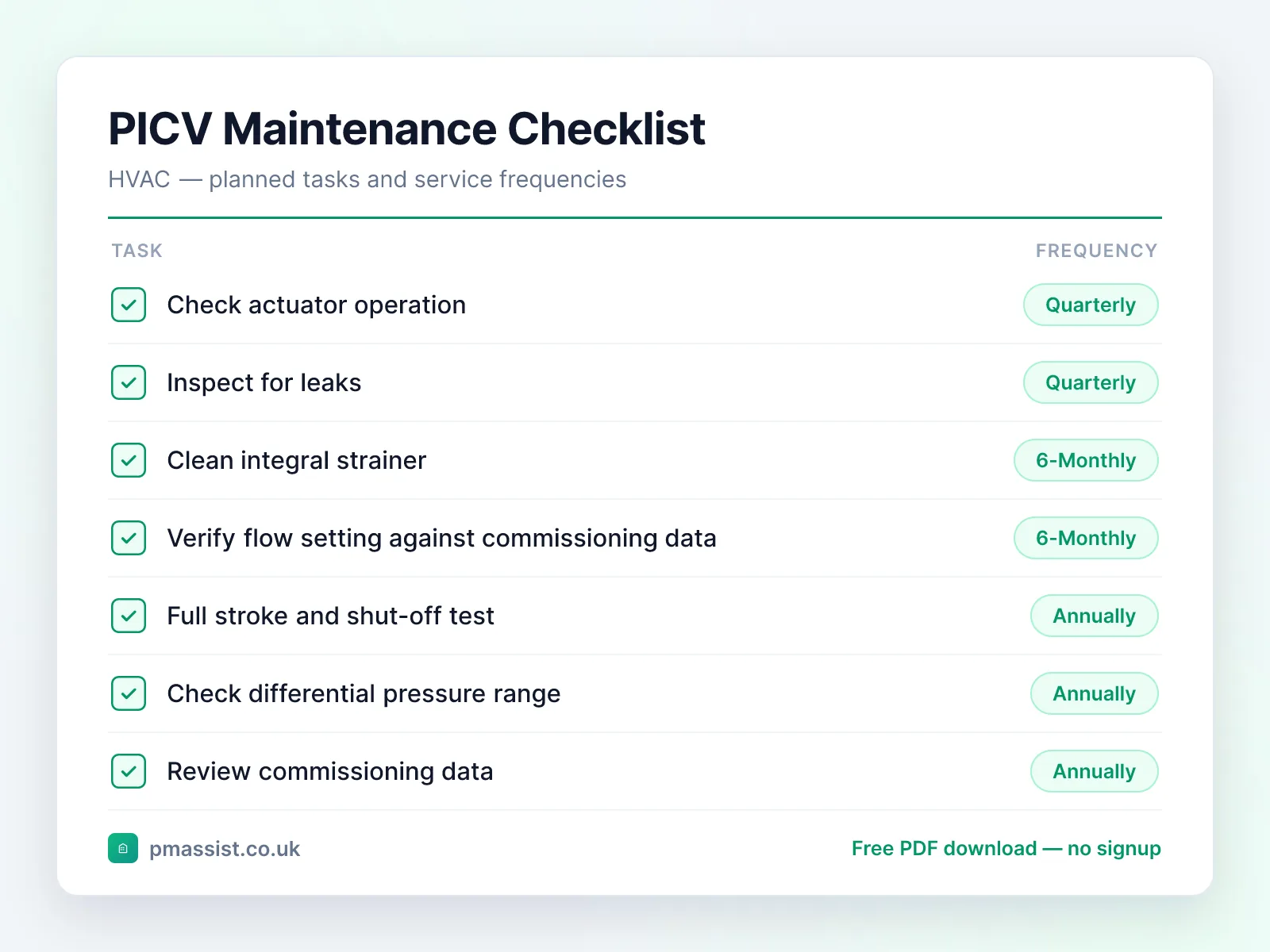

Typical maintenance frequency
Suggested intervals for pressure independent control valve (picv) maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Quarterly
- •Check actuator operation
- •Inspect for leaks
Every 6 Months
- •Clean integral strainer
- •Verify flow setting against commissioning data
Annually
- •Full stroke and shut-off test
- •Check differential pressure range
- •Review commissioning data
Common faults and issues
Issues to be aware of when maintaining pressure independent control valve (picv) equipment.
Safety and compliance notes
Key safety considerations for pressure independent control valve (picv) maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.
