Plate Heat Exchanger Maintenance Checklist
A maintenance checklist for plate heat exchangers covering plate inspection, gasket condition, pressure testing, and cleaning procedures — for HVAC and domestic hot water systems in commercial buildings.
By the PM Assist editorial team · Last reviewed · Editorial standards
PM Assist is building compliance software for UK property and facilities teams. This checklist comes from the same task library the product uses to generate planned maintenance.
Also available as editable Excel and Word — with asset, sign-off and findings columns.
What is a PHE maintenance checklist?
A plate heat exchanger maintenance checklist is a structured list of the 10 preventive maintenance tasks — covering visual, functional, cleaning, safety and record-keeping checks — that keep a plate heat exchanger running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core PHE checks
- Inspect for external leaks at plate gaskets and connections
- Check primary and secondary flow and return temperatures
- Clean plates if fouling is suspected (chemical flush or manual strip-down)
- Test pressure relief valve on the secondary side where fitted
- Record temperatures, pressures, and flow rates across the exchanger
What is a plate heat exchanger?
A plate heat exchanger transfers heat between two fluid circuits without mixing them. It consists of a series of corrugated metal plates with gaskets, clamped together in a frame. In building services, PHEs are used for heating system separation, domestic hot water generation, district heating interfaces, and cooling system isolation. Their compact size and high efficiency make them common in modern plant rooms.
This checklist is one of 15 in our heating maintenance checklists, covering boilers, calorifiers, heat exchangers, heat pumps and flues — combustion, controls and hot water safety checks.
Typical PHE maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.

Visual Checks
- Inspect for external leaks at plate gaskets and connections
- Check tie bolts are evenly torqued to manufacturer specification
- Inspect frame and carrying bars for corrosion
- Check gasket condition for deterioration, compression set, or hardening
Functional Checks
- Check primary and secondary flow and return temperatures
- Verify pressure drop across the exchanger is within normal range
- Verify isolation valves on both circuits operate freely
Cleaning & Housekeeping
- Clean plates if fouling is suspected (chemical flush or manual strip-down)
Safety Checks
- Test pressure relief valve on the secondary side where fitted
Record Keeping
- Record temperatures, pressures, and flow rates across the exchanger
Download the free PHE maintenance checklist PDF
Get all 10 tasks as a printable PDF — free, no signup needed. Keep a copy in the plant room, attach it to work orders, or share it with your maintenance contractor.
The PDF is free and needs nothing. The Excel and Word versions add asset details, sign-off and findings columns so you can record the work as you do it — we ask for an email address for those.

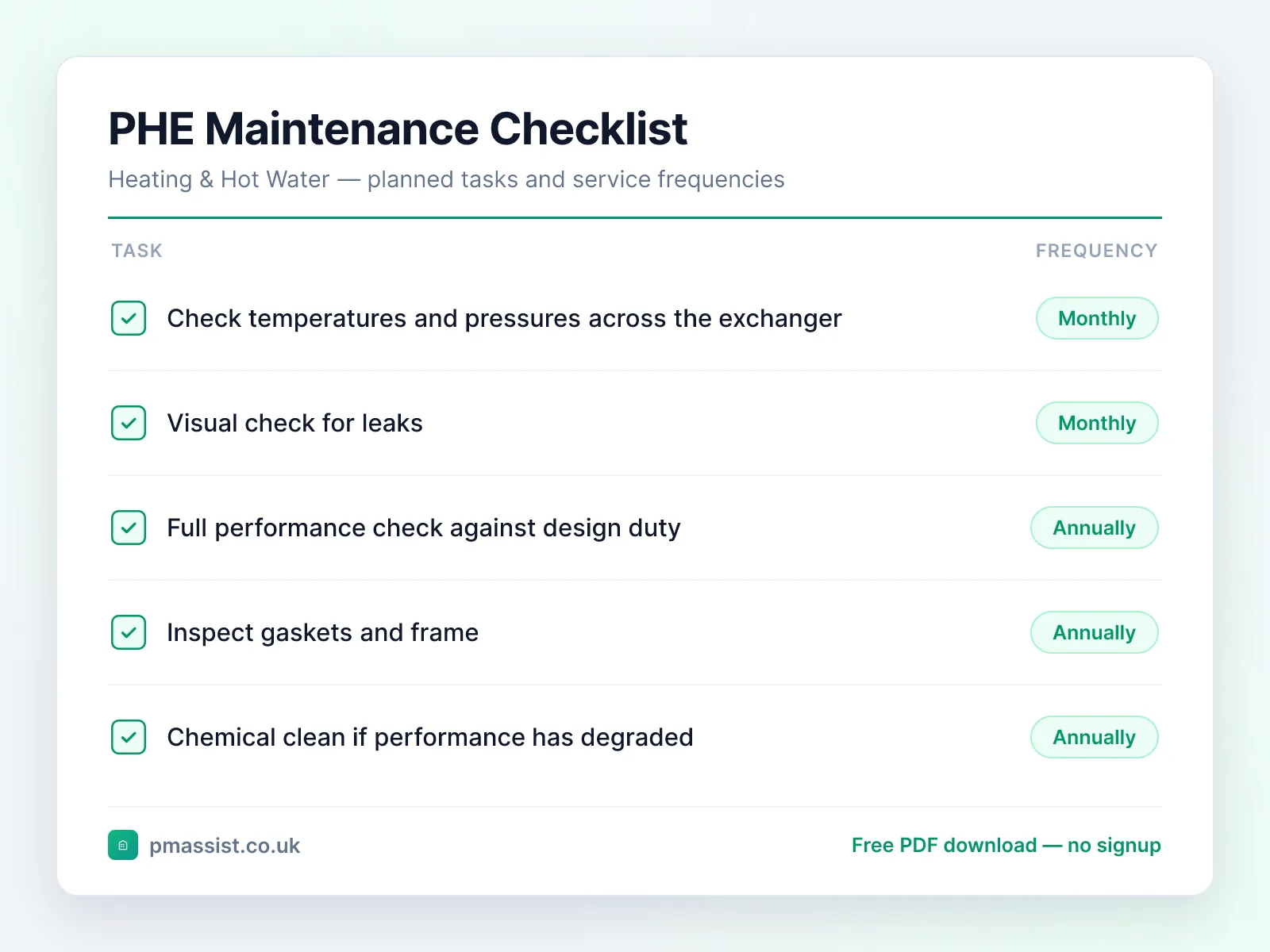

Typical maintenance frequency
Suggested intervals for plate heat exchanger maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Monthly
- •Check temperatures and pressures across the exchanger
- •Visual check for leaks
Annually
- •Full performance check against design duty
- •Inspect gaskets and frame
- •Chemical clean if performance has degraded
Common faults and issues
Issues to be aware of when maintaining plate heat exchanger equipment.
Safety and compliance notes
Key safety considerations for plate heat exchanger maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.
Reference standards and frameworks
- United Kingdom
- SFG20, CIBSE Guide M, and Gas Safe requirements for gas-fired plant
- North America
- ASHRAE/ACCA Standard 180, plus ASME CSD-1 for automatically fired boilers
- Middle East
- Dubai Municipality's Green Building Regulations require commissioning to CIBSE Commissioning Code B (boilers)
Frameworks commonly referenced when planning PHE maintenance programmes. Always confirm the requirements that apply to your site and jurisdiction.
