Air Handling Unit (AHU) Maintenance Checklist

Keep your AHU running efficiently with structured checks for filters, coils, belts, dampers, and frost protection — built for FM teams managing commercial HVAC plant.

Generate a custom checklist
Try PM Assist freeTry the live demo

What is an ahu maintenance checklist?

A air handling unit (ahu) maintenance checklist is a structured list of the 18 preventive maintenance tasks — covering visual, functional, cleaning, safety and record-keeping checks — that keep an air handling unit (ahu) running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.

Core ahu checks

  • Inspect pre-filters and bag filters for loading
  • Verify mixing, fresh air, and exhaust dampers operate fully open and closed
  • Clean condensate drain pan and confirm drain line and trap are clear
  • Verify fire and smoke damper interlocks function correctly on test signal from fire panel
  • Record filter differential pressures, fan currents, supply/return air temperatures and VSD speed

What is an air handling unit (ahu)?

An air handling unit conditions and circulates air as part of a building's heating, ventilation, and air conditioning system. It typically contains filters, heating and cooling coils, fans, dampers, and sometimes humidifiers. AHUs serve large zones or entire floors and are central to maintaining indoor air quality and thermal comfort in commercial buildings.

A typical commercial AHU draws return air from the served space, mixes it with fresh outside air through a mixing box, passes the combined stream through pre-filters and bag/HEPA filters, then through heating and cooling coils, and delivers conditioned air via supply ductwork. Some AHUs include thermal-wheel or plate heat-exchanger recovery to reduce energy use, particularly in modern buildings designed to Part L. Larger plant rooms may run several AHUs in parallel, each serving a separate zone or floor.

From an FM perspective, AHU maintenance — whether you call it air handling unit maintenance, air handling maintenance, or simply servicing the AHU — focuses on three things: air quality (filter condition, coil cleanliness, drain pan hygiene), efficiency (belt condition, bearing health, damper response), and statutory safety (fire and smoke damper interlocks, frost protection). Failures cluster around blocked filters, slipping belts, fouled coils, and seized dampers — most of which are detectable on a structured monthly visual round before they become a fault call.

This checklist is one of 34 in our HVAC maintenance checklists, covering air handling units, fan coils, chillers, VRF, ductwork and extract systems — filters, coils, refrigerant and damper checks.

Typical AHU maintenance checklist

A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.

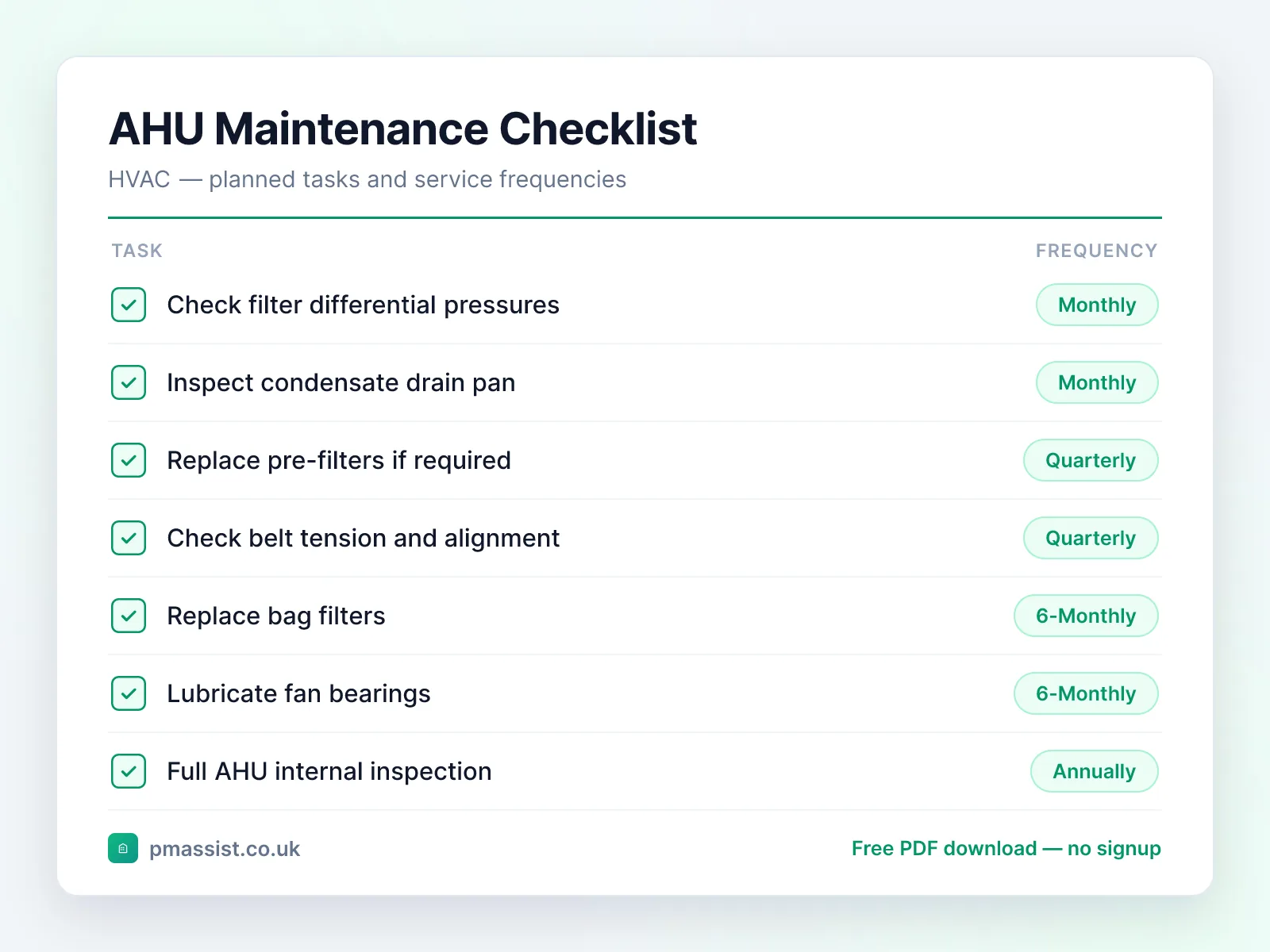

Air Handling Unit (AHU) maintenance checklist showing tasks such as check filter differential pressures and inspect condensate drain pan, each with its service frequency
A preview of the AHU maintenance checklist — the full 18-task routine, service frequencies and safety notes are below, free to download as a PDF.

Visual Checks

  • Inspect pre-filters and bag filters for loading — replace if differential pressure exceeds manufacturer limit
  • Check fan belts for tension, wear, and cracking — adjust or replace as needed
  • Inspect heating and cooling coils for fouling, fin damage, or corrosion
  • Inspect heat recovery wheel or plate exchanger for fouling and bypass damper operation

Functional Checks

  • Verify mixing, fresh air, and exhaust dampers operate fully open and closed
  • Confirm supply and return air temperatures match BMS setpoints within tolerance
  • Check fan bearings for noise, vibration, and temperature
  • Test frost protection stat and low-limit controls
  • Measure supply and return air pressure to confirm fan operating point
  • Verify variable speed drive (VSD) frequency and current at duty point
  • Check humidifier operation, demineralised water supply and steam delivery (if fitted)

Cleaning & Housekeeping

  • Clean condensate drain pan and confirm drain line and trap are clear
  • Clean coil surfaces with appropriate coil cleaner where accessible
  • Vacuum or wipe internal AHU casing — including filter housings and mixing box floor

Safety Checks

  • Verify fire and smoke damper interlocks function correctly on test signal from fire panel
  • Check access panels, interlocks and guards are secure with no exposed rotating parts

Record Keeping

  • Record filter differential pressures, fan currents, supply/return air temperatures and VSD speed
  • Log belt replacements, filter changes, coil cleans and any component repairs in the asset record

Download the free AHU maintenance checklist PDF

Get all 18 tasks as a printable PDF — free, no signup needed. Keep a copy in the plant room, attach it to work orders, or share it with your maintenance contractor.

Generate a custom checklist
Try PM Assist freeTry the live demo

Typical maintenance frequency

Suggested intervals for air handling unit (ahu) maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.

Monthly

  • •Check filter differential pressures
  • •Inspect condensate drain pan
  • •Visual inspection of fan belts
  • •Log fan currents and VSD speed

Quarterly

  • •Replace pre-filters if required
  • •Check belt tension and alignment
  • •Inspect coils for fouling
  • •Test damper operation

Every 6 Months

  • •Replace bag filters
  • •Lubricate fan bearings
  • •Full damper stroke test
  • •Check frost stat operation
  • •Inspect heat recovery components

Annually

  • •Full AHU internal inspection
  • •Coil deep clean
  • •Fan vibration analysis
  • •Electrical connection checks
  • •Review BMS trending data
  • •Statutory fire/smoke damper drop test

Common faults and issues

Issues to be aware of when maintaining air handling unit (ahu) equipment.

Blocked or collapsed filters causing high static pressure and reduced airflow
Slipping or worn fan belts leading to reduced air delivery and unstable supply temperature
Blocked condensate drains causing water overflow into ductwork or ceiling voids
Failed or seized mixing damper actuators resulting in poor temperature control or no fresh air
Coil fouling reducing heat transfer efficiency and increasing energy consumption
Bearing failure from lack of lubrication causing fan noise, vibration and eventual motor damage
Frost protection thermostat failure leading to coil freeze damage during cold spells
Heat recovery wheel seizure or seal failure dropping efficiency and triggering high-current trips
Humidifier scaling and bacterial growth — particularly on steam-generated and pan-type units
VSD harmonic distortion or insulation breakdown on retrofitted older fans

Safety and compliance notes

Key safety considerations for air handling unit (ahu) maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.

Isolate and lock off the AHU electrically before any internal access — follow your site permit-to-work procedure
Allow rotating parts to come to a complete stop before opening access panels
Wear appropriate PPE including gloves and eye protection when handling filters or cleaning coils
Do not bypass fire or smoke damper interlocks — report any failures to fire safety management
Ensure all access panels and guards are refitted before restarting the unit
Treat humidifier and drain pan biofilm as a legionella risk — follow the site water hygiene scheme

Reference standards and frameworks

United Kingdom
SFG20 schedules and CIBSE Guide M
North America
ASHRAE/ACCA Standard 180 (HVAC inspection and maintenance)

Frameworks commonly referenced when planning ahu maintenance programmes. Always confirm the requirements that apply to your site and jurisdiction.

How PM Assist helps

Managing AHU documentation with PM Assist

PM Assist helps FM and building operations teams search their O&M manuals and building drawings in seconds. Upload your air handling unit (ahu) documentation and ask questions like “What are the AHU filter specifications?” or “Where is the isolation point for the AHU?” — and get source-cited answers instantly.

See PM Assist answer questions about a real ahu manual — try the live demo, no signup needed.

Take this checklist with you

Download the branded PDF, generate a custom version for your asset, or run AI search across all your building documentation.

Instant download either way — the email is optional. One short email a month, unsubscribe anytime. See our privacy policy.

Generate a custom checklist
Try PM Assist freeTry the live demo

Related free tools

HVAC Fault DiagnosisMaintenance Checklist GeneratorChiller Diagnostic & Refrigerant CalculatorO&M Manual AI SearchAll free tools

Related maintenance checklists

Fan Coil Unit (FCU) maintenance checklist

HVAC · 11 tasks

Variable Air Volume (VAV) Box maintenance checklist

HVAC · 11 tasks

Smoke Damper maintenance checklist

Fire Safety · 14 tasks

Extract Fan maintenance checklist

Ventilation · 12 tasks

Supply Fan maintenance checklist

Ventilation · 12 tasks

All HVAC maintenance checklistsView all maintenance checklists

Inspection checklists for this asset

Maintenance keeps the asset working; a statutory inspection records whether it currently passes. Both usually apply.

Building Inspection Checklist

All statutory inspection checklists

Further reading on ahu maintenance

Reactive vs Planned Maintenance Explained·Why Building Engineers Waste Hours Searching Documentation·How to Search O&M Manuals with AI·All articles

Compliance topics for ahu maintenance

SFG20 Explained: The Standard for Building Maintenance·Planned Preventive Maintenance (PPM) Explained·AHU Cleaning Explained·F-Gas Regulations Explained·All topics

Related guides

Find Equipment Specifications Across Building Documents·Find Maintenance Schedules in O&M Manuals·Search Building System & Maintenance Records with AI·Planned Preventive Maintenance Documentation·All guides·UK facilities management statistics

Frequently asked questions

How often should AHU filters be changed?
Pre-filters are typically replaced every 1–3 months and bag/secondary filters every 6–12 months, depending on the environment. Always monitor differential pressure gauges — filters should be changed when pressure drop exceeds the manufacturer's recommended limit, not just on a fixed schedule. An urban plant room next to a dusty road may need pre-filters monthly; a quiet office suburb may run them for a full quarter without issue.
What causes poor air quality from an AHU?
Common causes include overloaded filters, contaminated coils, blocked condensate drains harbouring microbial growth, failed fresh air dampers reducing outside air intake, or deteriorated ductwork. Regular inspection and cleaning of each component is essential. Where occupant complaints persist after maintenance, a structured indoor-air-quality survey (CO₂, PM2.5, formaldehyde) usually identifies the cause within a single visit.
Do AHUs need annual servicing?
Yes. While routine checks should happen monthly or quarterly, a full annual service including coil cleaning, belt replacement, bearing lubrication, vibration analysis, and electrical checks helps prevent breakdowns and maintains efficiency. For UK commercial buildings, annual servicing is also the right cadence for the statutory fire and smoke damper drop test.
What is AHU frost protection?
Frost protection uses a low-limit thermostat to detect dangerously low temperatures across the heating coil. If triggered, it closes the fresh air damper, opens the heating valve, and typically stops the fan to prevent coil freeze damage. The stat must be tested before each heating season — a failed frost stat during a cold snap can rupture a heating coil and write the unit off.
What does air handling unit annual maintenance include?
Annual AHU maintenance typically includes a full internal inspection, deep clean of heating and cooling coils, replacement of bag and secondary filters, lubrication of fan bearings, vibration analysis, belt replacement where worn, inspection and testing of fire and smoke damper interlocks, frost protection thermostat test, electrical connection checks, and a review of BMS trending data. A written service report should document all findings and components replaced — this is the evidence trail FM and property managers need for lease compliance reporting.
How much does AHU maintenance cost per year in the UK?
For a typical commercial AHU (5,000–15,000 m³/h), a PPM contract in the UK runs roughly £400–£1,200 per unit per year depending on size, access, and what filters are included. Reactive call-outs are typically £180–£350 per visit before parts. Filter consumables can dwarf labour cost on dirty sites — a bag-filter pack for a large AHU can be £150–£400 per change. Coil deep cleans on the annual service add £200–£600 depending on accessibility.
How is AHU efficiency measured and what's a good target?
AHU efficiency is normally tracked via specific fan power (SFP, W/(l/s)) and the achieved supply-air-to-return-air temperature ΔT under design load. UK Part L sets SFP targets — for example ≤1.6 W/(l/s) for fans in new commercial AHUs with heat recovery. In service, monitor fan kW vs delivered airflow on the BMS — a rising kW for the same airflow indicates filter loading, belt slip, or coil fouling. A 20% rise from commissioning values is a strong trigger to investigate.
What's the typical lifespan of a commercial AHU?
AHU casings and structural components typically last 20–25 years in a well-maintained building. Internal components have shorter lives: belts 1–3 years, bearings 5–10 years, motors 10–15 years, and coils 15–20 years before fouling-driven replacement makes sense. Heat recovery wheels and humidifiers cluster around 10–15 years. Component-level replacement usually keeps an AHU running well past the casing's nominal design life.
How does VSD operation affect AHU maintenance?
Variable speed drives reduce energy use by matching fan speed to load instead of running flat-out, but they introduce their own maintenance requirements: cooling fan filters, capacitor lifespan, harmonic distortion checks, and IGBT thermography. Add the VSD itself to the PPM regime — check error logs, ambient panel temperature, and motor cable insulation annually. A failed VSD on a critical AHU typically takes a building offline within hours.
Why is my AHU tripping on high static pressure?
High static pressure trips are almost always either heavily loaded filters or a blocked downstream component (closed fire damper, VAV terminal failure, ductwork obstruction). Check the filter differential first, then verify all damper positions on the BMS, then walk the supply duct for any obvious blockage. If filters are recent and pressures look normal at the BMS, suspect a failed static pressure sensor or a closed VAV box stuck shut.
Does this checklist cover heat recovery AHUs and modern MVHR units?
The core checklist applies — filters, fans, coils, dampers and electrical checks are universal. For heat recovery AHUs (thermal wheel, plate exchanger, run-around coil), add: bypass damper actuation test, wheel motor and seal inspection, plate exchanger fouling check, and run-around glycol concentration test. Domestic-scale MVHR units use a similar logic at smaller scale; see the dedicated MVHR maintenance checklist for the standalone version.
What's the difference between a CAV and VAV AHU?
A constant air volume (CAV) AHU delivers a fixed airflow and modulates supply temperature to control the space. A variable air volume (VAV) AHU delivers a constant supply temperature and modulates the airflow at zone-level VAV boxes. Maintenance is broadly similar, but VAV systems require additional attention to fan VSD operation, static pressure sensor accuracy, and the VAV terminals themselves — each of which has its own dedicated maintenance checklist.
How do you clean an AHU, and how often?
AHU cleaning is done section by section with the unit isolated and locked off. Working in the airflow direction: remove and bag the filters, then vacuum the filter frames and the mixing box floor where dust settles; clean the heating and cooling coils with a fin-safe coil cleaner and low-pressure rinse, working from the leaving-air side so the debris comes out the way it went in; lift and scrub the condensate drain pan, flush the drain line and re-prime the trap; wipe down the fan scroll, impeller and motor casing (an impeller carrying dust is out of balance and will take its bearings with it); and vacuum the casing panels and door seals. Heat recovery wheels and plate exchangers get a soft brush and vacuum, never a jet. Every six to twelve months is typical for a general office unit, more often for kitchens, healthcare and sites near roads or construction; after cleaning, take an internal condition photo for the asset record. Where the ductwork beyond the unit is fouled, that is a separate TR19-style duct clean, not part of the AHU service.
