Smoke Damper Maintenance Checklist
Ensure life safety compliance with smoke damper checks covering actuator testing, blade seal integrity, BMS interlock verification, and fire strategy documentation.
What is a smoke damper maintenance checklist?
A smoke damper maintenance checklist is a structured list of the 14 preventive maintenance tasks — covering visual, functional, cleaning, safety and record-keeping checks — that keep a smoke damper running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core smoke damper checks
- Inspect damper blades and seals for damage or deterioration
- Operate damper from fully open to fully closed and back
- Clean damper blades and frame where grease or dust buildup is present
- Ensure fire alarm interface and wiring are secure
- Record test date, pass/fail result, and any remedial actions
What is a smoke damper?
A smoke damper prevents the spread of smoke through ductwork and ventilation systems during a fire. It is activated by a signal from the fire alarm system or a dedicated smoke detector, closing (or, in a smoke-control system, opening) automatically to contain or extract smoke within the fire strategy for the building. Smoke dampers are a key element of the building's life safety strategy and must be tested regularly to ensure reliable operation.
Unlike a fire damper, which closes passively on a heat-activated fusible link, a smoke damper is motorised and driven by the fire alarm or smoke-control panel — so its maintenance is as much about the actuator, wiring and signal interface as it is about the blades. Many modern installations use combined fire/smoke dampers, which must satisfy both the mechanical (thermal) and the electrical (alarm-driven) regimes. The page below covers the physical inspection and functional maintenance tasks; for working out next-due test dates against your building's risk class, use the linked drop test scheduler.
The most common reason a smoke damper fails its test is not the damper itself but the chain around it: a seized actuator, a corroded linkage, a wiring fault on the fire interface, or simply a damper buried above a plasterboard ceiling with no access panel. A good smoke damper maintenance regime checks all of those, not just the blade stroke, and records each result in the fire safety log book.
Typical Smoke damper maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.
Visual Checks
- Inspect damper blades and seals for damage or deterioration
- Check actuator and linkage for corrosion, looseness, or misalignment
- Verify the damper is accessible for future inspection and testing
- Confirm an access panel is present, correctly sized and labelled at the damper
Functional Checks
- Operate damper from fully open to fully closed and back — confirm full stroke
- Verify damper closes on fire alarm signal or dedicated detector activation
- Confirm damper resets correctly after test
- Verify the damper closes within the time required by the fire strategy
- On combined fire/smoke dampers, test both the thermal link and the alarm-driven closure
Cleaning & Housekeeping
- Clean damper blades and frame where grease or dust buildup is present
Safety Checks
- Ensure fire alarm interface and wiring are secure
- Confirm the damper is correctly identified on fire system drawings
- Check the actuator spring-return (or fail-safe) operates on loss of power/signal
Record Keeping
- Record test date, pass/fail result, and any remedial actions

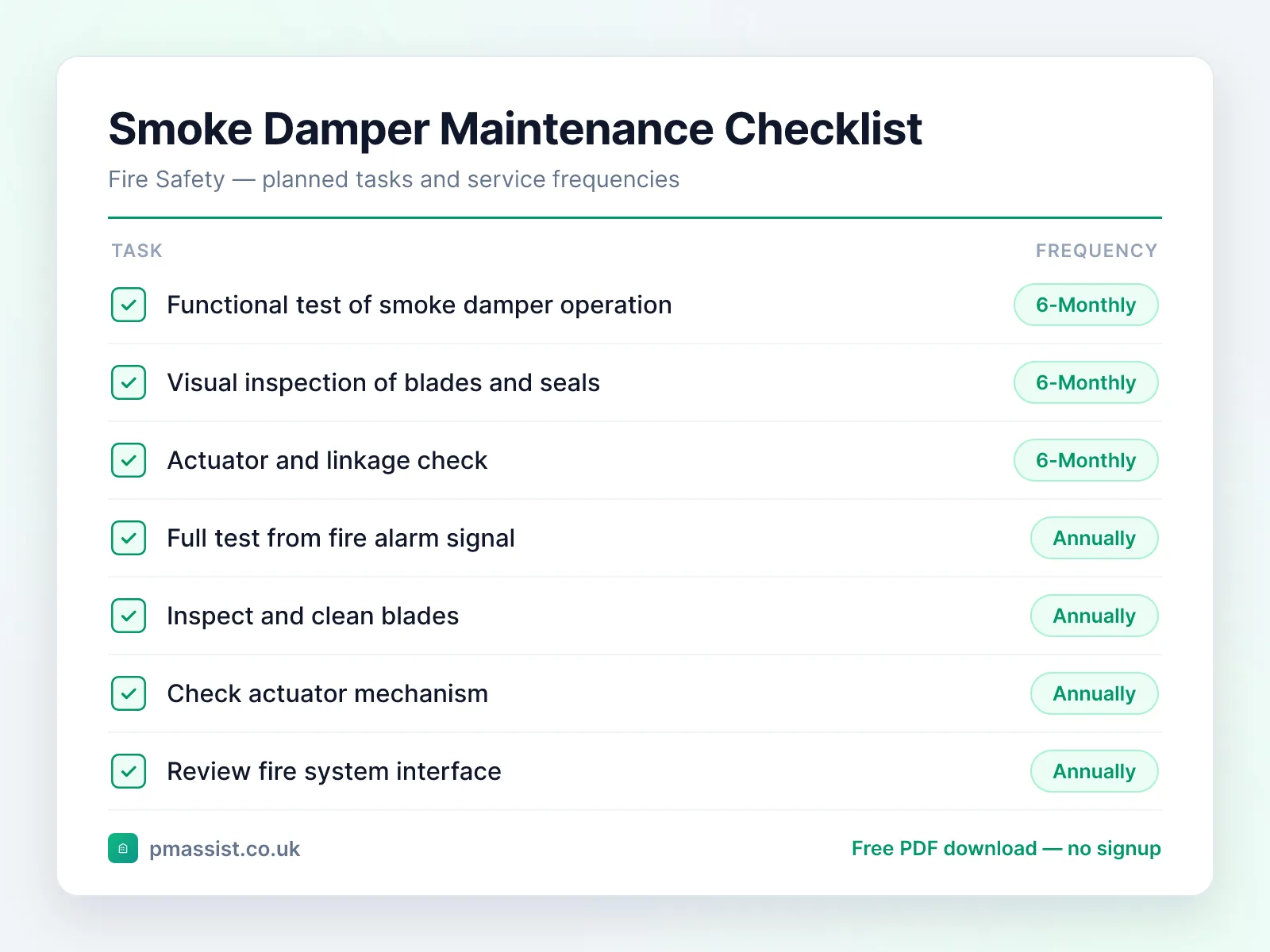

Typical maintenance frequency
Suggested intervals for smoke damper maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Every 6 Months
- •Functional test of smoke damper operation
- •Visual inspection of blades and seals
- •Actuator and linkage check
Annually
- •Full test from fire alarm signal
- •Inspect and clean blades
- •Check actuator mechanism
- •Review fire system interface
- •Confirm closure timing against the fire strategy
Common faults and issues
Issues to be aware of when maintaining smoke damper equipment.
Safety and compliance notes
Key safety considerations for smoke damper maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.
