Trace Heating Panel Maintenance Checklist
A maintenance checklist for trace heating panels covering element insulation testing, thermostat calibration, alarm verification, and circuit monitoring — for frost protection of pipework and equipment.
What is a trace heating panel maintenance checklist?
A trace heating panel maintenance checklist is a structured list of the 10 preventive maintenance tasks — covering visual, functional, safety and record-keeping checks — that keep a trace heating panel running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core trace heating panel checks
- Inspect heating cable fixings and insulation at accessible points
- Check the panel status display for alarms or tripped circuits
- Verify earth leakage protection devices (RCDs) operate correctly
- Record insulation resistance values, current draw per circuit, and thermostat settings
What is a trace heating panel?
A trace heating panel controls electric heating cables that maintain pipe and equipment temperatures above freezing or at a required process temperature. Trace heating protects exposed water pipework, condensate lines, fire sprinkler systems, and tank connections from frost damage. The panel contains circuit breakers, earth leakage protection, thermostats or controllers, and monitoring alarms. Reliable trace heating is especially critical in winter — failure during a cold snap can result in burst pipes and significant water damage.
This checklist is one of 16 in our electrical maintenance checklists, covering distribution boards, switchgear, generators, UPS, solar PV and EV charging — inspection, testing and thermographic checks.
Typical Trace heating panel maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.
Visual Checks
- Inspect heating cable fixings and insulation at accessible points
- Check for damaged or displaced insulation on trace-heated pipework
Functional Checks
- Check the panel status display for alarms or tripped circuits
- Verify each trace heating circuit is operational (check current draw)
- Measure insulation resistance of each heating element circuit
- Check thermostat settings match the required frost protection temperature
- Verify alarm outputs to BMS or monitoring system
Safety Checks
- Verify earth leakage protection devices (RCDs) operate correctly
- Test the high-temperature alarm where fitted
Record Keeping
- Record insulation resistance values, current draw per circuit, and thermostat settings
Download the free Trace heating panel maintenance checklist PDF
Get all 10 tasks as a printable PDF — free, no signup needed. Keep a copy in the plant room, attach it to work orders, or share it with your maintenance contractor.
Typical maintenance frequency
Suggested intervals for trace heating panel maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Monthly

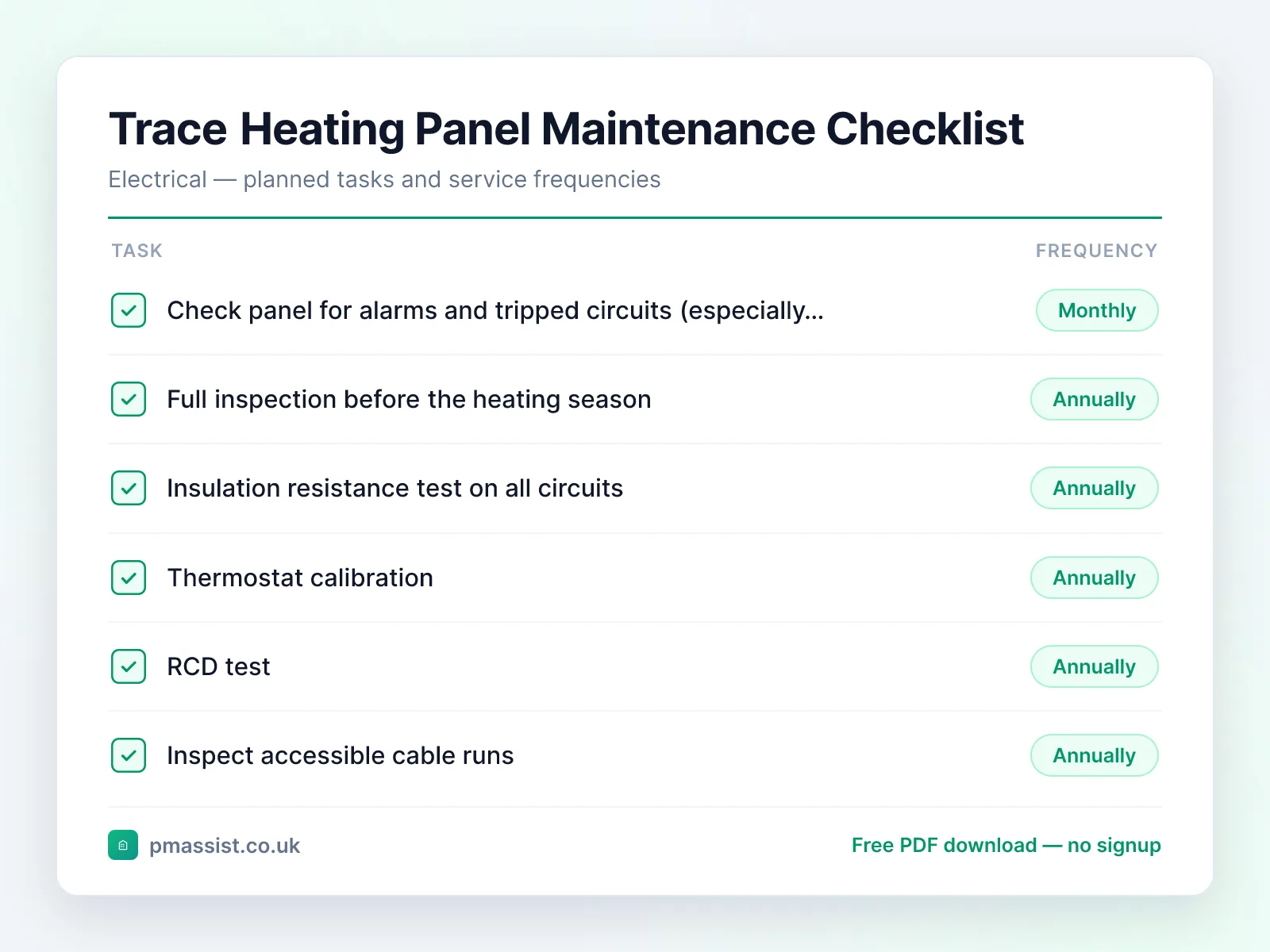

- •Check panel for alarms and tripped circuits (especially during winter months)
Annually
- •Full inspection before the heating season
- •Insulation resistance test on all circuits
- •Thermostat calibration
- •RCD test
- •Inspect accessible cable runs
