Variable Speed Drive (VSD / Inverter) Maintenance Checklist
Keep variable speed drives running fans and pumps efficiently — cooling and filter checks, fault-log review, termination torque, and parameter and insulation verification.
Also available as editable Excel and Word — with asset, sign-off and findings columns.
What is a vsd / inverter maintenance checklist?
A variable speed drive (vsd / inverter) maintenance checklist is a structured list of the 10 preventive maintenance tasks — covering visual, functional, cleaning and record-keeping checks — that keep a variable speed drive (vsd / inverter) running safely and reliably. It groups routine checks by frequency, from daily inspections to annual servicing, so FM teams and building engineers can plan and evidence preventive maintenance.
Core vsd / inverter checks
- Check terminations for tightness and signs of heat or discoloration
- Review the fault and event log for trips, warnings, and recurring issues
- Check the drive's cooling fans and heatsink, and clean filters and vents
- Confirm parameters/configuration match commissioning and are backed up
What is a variable speed drive (vsd / inverter)?
A variable speed drive (VSD), or inverter, controls the speed of an AC motor by varying frequency and voltage, matching fan or pump output to demand instead of running flat-out. VSDs deliver large energy savings on HVAC plant but introduce their own failure modes: overheating from blocked cooling, capacitor ageing, loose terminations under thermal cycling, harmonic distortion, and motor-cable insulation stress. Maintenance keeps the drive cool and clean, reviews fault history, confirms terminations and parameters, and protects the driven motor — because a failed VSD on a critical fan or pump can take a system offline within hours.
This checklist is one of 10 in our BMS and controls maintenance checklists, covering bMS panels and head-ends, DDC controllers, inverters, sensors and actuators — calibration, overrides and strategy backups.
Typical VSD / Inverter maintenance checklist
A practical starting point for planned preventive maintenance. Always refer to the manufacturer's O&M manual and site-specific requirements.
Visual Checks
- Check terminations for tightness and signs of heat or discoloration
- Inspect for capacitor bulging or electrolyte signs on older drives
Functional Checks
- Review the fault and event log for trips, warnings, and recurring issues
- Confirm the panel/enclosure ambient temperature is within the drive's rating
- Verify the drive follows the speed command and current is normal at duty
- Check motor cable insulation and gland integrity (screened cable, earthing)
- Confirm bypass arrangement (if fitted) operates correctly
Cleaning & Housekeeping
- Check the drive's cooling fans and heatsink, and clean filters and vents
Record Keeping
- Confirm parameters/configuration match commissioning and are backed up
- Record fault log, parameters, temperatures, and remedial work

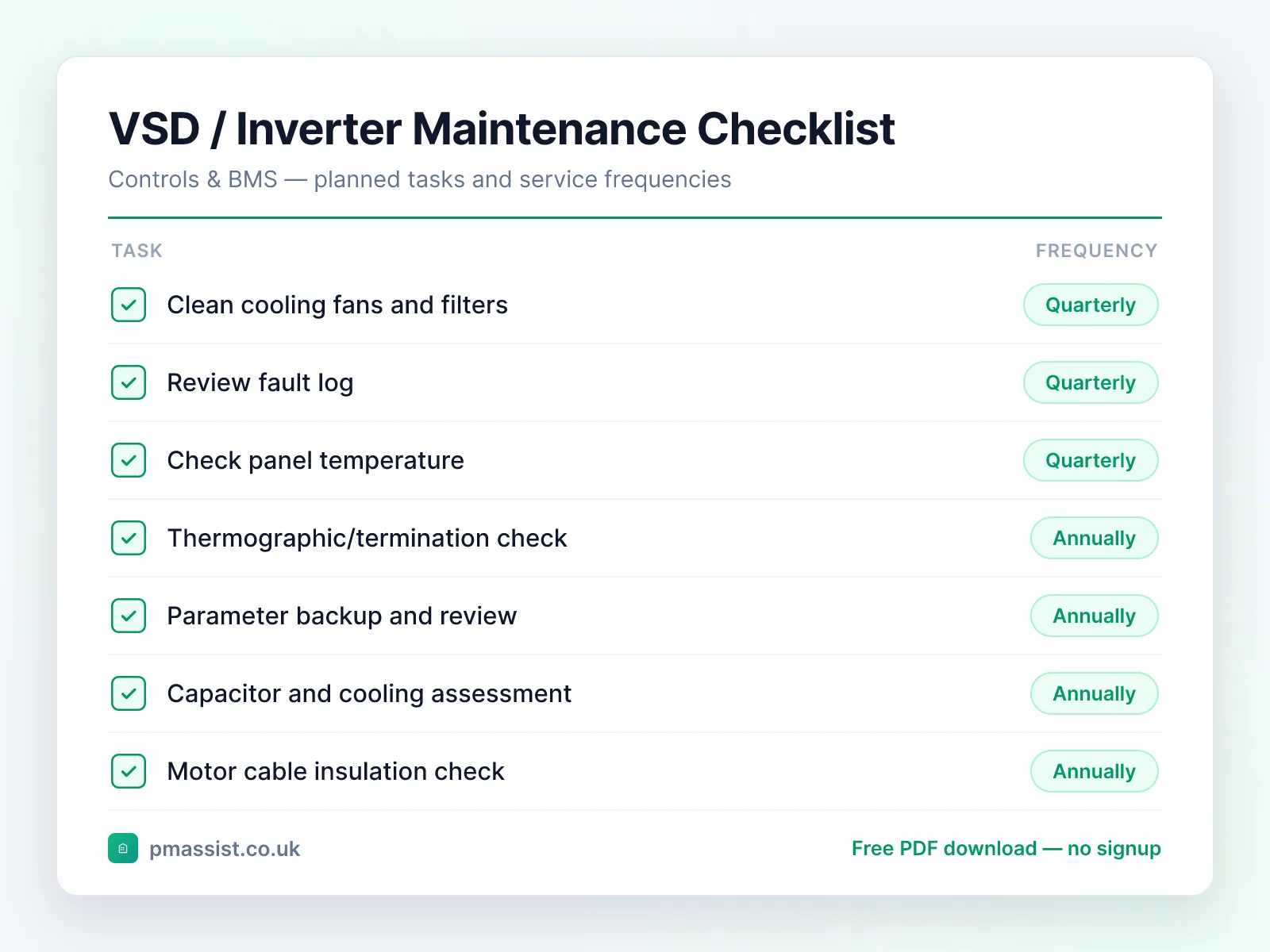

Download the free VSD / Inverter maintenance checklist PDF
Get all 10 tasks as a printable PDF — free, no signup needed. Keep a copy in the plant room, attach it to work orders, or share it with your maintenance contractor.
The PDF is free and needs nothing. The Excel and Word versions add asset details, sign-off and findings columns so you can record the work as you do it — we ask for an email address for those.
Typical maintenance frequency
Suggested intervals for variable speed drive (vsd / inverter) maintenance. Actual frequencies should follow manufacturer guidance and site-specific risk assessments.
Quarterly
- •Clean cooling fans and filters
- •Review fault log
- •Check panel temperature
Annually
- •Thermographic/termination check
- •Parameter backup and review
- •Capacitor and cooling assessment
- •Motor cable insulation check
Common faults and issues
Issues to be aware of when maintaining variable speed drive (vsd / inverter) equipment.
Safety and compliance notes
Key safety considerations for variable speed drive (vsd / inverter) maintenance. This is general guidance only — always follow OEM instructions, statutory requirements, and your organisation's safe systems of work.
Reference standards and frameworks
- United Kingdom
- SFG20 schedules and CIBSE Guide H (building control systems)
- North America
- ASHRAE Guideline 13 (specifying building automation systems)
- Middle East
- Dubai Municipality's Green Building Regulations require commissioning to CIBSE Commissioning Code C (automatic controls) for BMS and central control
Frameworks commonly referenced when planning vsd / inverter maintenance programmes. Always confirm the requirements that apply to your site and jurisdiction.
